avrilmachinery C-series diesel engine forklift capacity is 2 tons to 5 tons .We use ergonomic a compact industrial vehicle primarily used for lifting and transporting heavy loads within warehouses, construction sites, or other material handling environments. This type of forklift is powered by a diesel engine, which provides the necessary power and torque for its operations.
Item No :
avrilmachinery C Type forkliftOrder(MOQ) :
1Payment :
TTProduct Origin :
ChinaColor :
Free customizationShipping Port :
QingdaoLead Time :
1 unit/15 daysWeight :
depends on tonnage

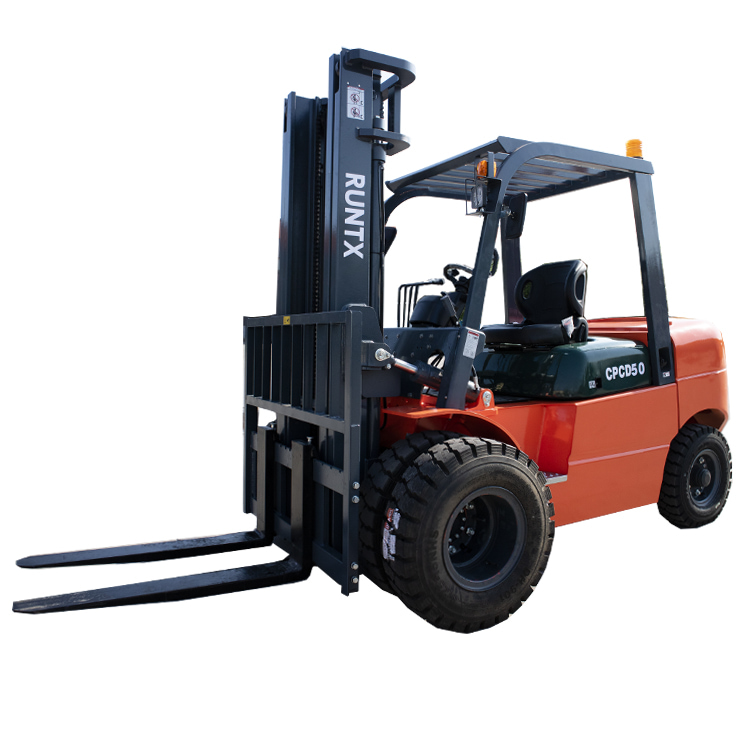

5 ton diesel engine forklift
avrilmachinery C series forklift with a strong and durable structure, it is suitable for carrying materials in the weight range, ensuring efficient material handling in confined areas
| General | 1 | Model | CPCD40 | CPCD45 | CPCD50 | |||
| 2 | Power Type | Diesel | Diesel | Diesel | ||||
| 3 | Rated Capacity | kg | 4000 | 4500 | 5000 | |||
| 4 | Load Centre | mm | 500 | 500 | 500 | |||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1070×150×50 | 1070×150×50 | 1070×150×50 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | 6°/12° | ||
| 8 | Fork Overhang (Wheel center to fork face) | mm | 579 | 579 | 579 | |||
| 9 | Ground Clearance（Bottom of mast） | mm | 170 | 170 | 170 | |||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 3260 | 3260 | 3260 | ||
| 11 | Overall Width | mm | 1460 | 1460 | 1460 | |||
| 12 | Mast Lowered Height | mm | 2270 | 2270 | 2270 | |||
| 13 | Mast Extended Height(With backrest) | mm | 4165 | 4165 | 4165 | |||
| 14 | Overhead Guard Height | mm | 2340 | 2340 | 2340 | |||
| 15 | Turning Radius (outside) | mm | 2910 | 2910 | 2910 | |||
PRODUCT FEATURE
avrilmachinery forklift trucks that made with the most mature technical design provide you excellent operating performance.
Comfortable operating space
---To ensure the safety and comfort of the operator, the forklift is equipped with a spacious and ergonomic cab. The cab design gives the operator a clear view of their surroundings to safely operate the forklift. It also features intuitive controls and a comfortable seating position to reduce operator fatigue during long periods of operation.
Environment friendly
--- The emission meets EC and EPA new regulation. High efficiency hydraulic system to lower the fuel consumption.Using environmental friendly material.Damping device on the mast to reduce impact and vibration.Sound insulating and absorbing device are used to reduce the noise
Safety performance
---Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.In terms of safety, forklifts are equipped with light and sound sirens and also include safety mechanisms such as seat belts, emergency stop buttons and horns for quick communication.
OEM services
---We support customers to customize their own colors and logos, and support the selection of door frames of different heights and attached accessories according to the specific work needs of customers.
