 avrilmachinery warehouse Equipment Electric reach stacker model CQD24V
avrilmachinery Electric Reach Stacker CQD24V

avrilmachinery warehouse Equipment Electric reach stacker model CQD24V

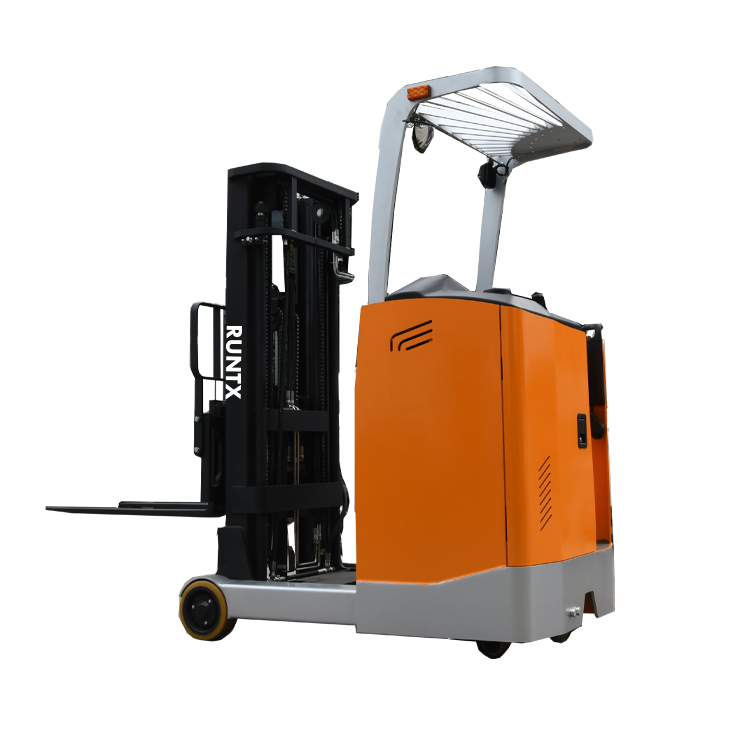

Electric Reach Stacker model CQD24V

  • Item No :

    avrilmachinery model CQD Electric Reach Stacker

  • Order(MOQ) :

    1

  • Payment :

    TT/LC

  • Product Origin :

    China

  • Color :

    free OEM

  • Shipping Port :

    Qingdao

  • Lead Time :

    15

  • Weight :

    depends on tonnage.
Inquire Now
Categories
New Products
Electric Reach Stacker model CQD24v

Electric Reach Stacker model CQD24V

The reach stacker is more flexible than the driver's stacker, because the operator can move around on foot at any time, and it is more convenient to operate in a small space.

Name
Electric reach truck forklift(24V)
Operation type
Standing posture
Model No.
unit
CQD  12D-30
CQD 15D-30
CQD 20D-30
Power type

Full-electric
Capacity
kg
1200
1500
2000
Max.lifting height
H2(mm)
3000
3000
3000
Load centre
C(mm)
500
500
500
Wheel type

PU solid tire
The mast angle

3/5
3/5
3/5
Fork Dimensions
mm
1070*100*35
1070*100*35
1070*122*40
Fork spread
mm
210-705
210-705
270-705
Reach distance
mm
555
555
640
Overall length including fork
L(mm)
2215
2215
2285
Overall width
S(mm)
1090
1090
1090
Mast lowered height
H1(mm)
2100
2100
2100
Mast extended height
H(mm)
3965
3965
3965
Turning radius
Wa(mm)
1600
1600
1750
The height of overhead guard
mm
2280
2280
2280
Min stacking aisle(1000x1200mm)
mm
2620
2620
2720
Min ground clearance
mm
70
70
70
Max travel speed
Km/h
4/5
4/5
4/5
Grade ability
%
6/8
6/8
5/8
Total weight
kg
2000
2200
2250
Driving wheel
mm
230*75
Front wheel
mm
210*85
Balance wheel
mm
150*50
Battery capapcity
V/Ah
28/280
24/280
24//280
Charger-Interlligent
V/A
24/40
24/50
24/40
Drave motor
KW
2.5
2.5
2.5
Lifting motor
KW
3
3
3
Drive controlling type

2.5(AC)
Walking adjuststable

Holzer type accelerator
Walkie brake

Electromagnetic





PRODUCT FEATURE



avrilmachinery warehouse Equipment that made with the most mature technical design provide you excellent operating performance.



warehouse Equipment CQD
1. Because of CURTIS electronic control, so we have multiple
automatic protection system controllers.
2. Without frequently adjustment, Damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.
3. High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.
4. Anti-skid brake function prevent the car from declining when car driving out of control or at slope.
5. AC driving system, Driven steepless speed regulation, safe, quiet,emergency reverse device /emergency brake switch.
6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
CQD details
Assistance System to fit in your specific working condition.

Side pulled battery, free battery changing trolley.

Imported Germany brand transmission.



Hot Tags : Electric Reach Stacker 2 ton electric pallet truck Seat Type pallet truck reach truck reach stacker 3 ton reach stacker
